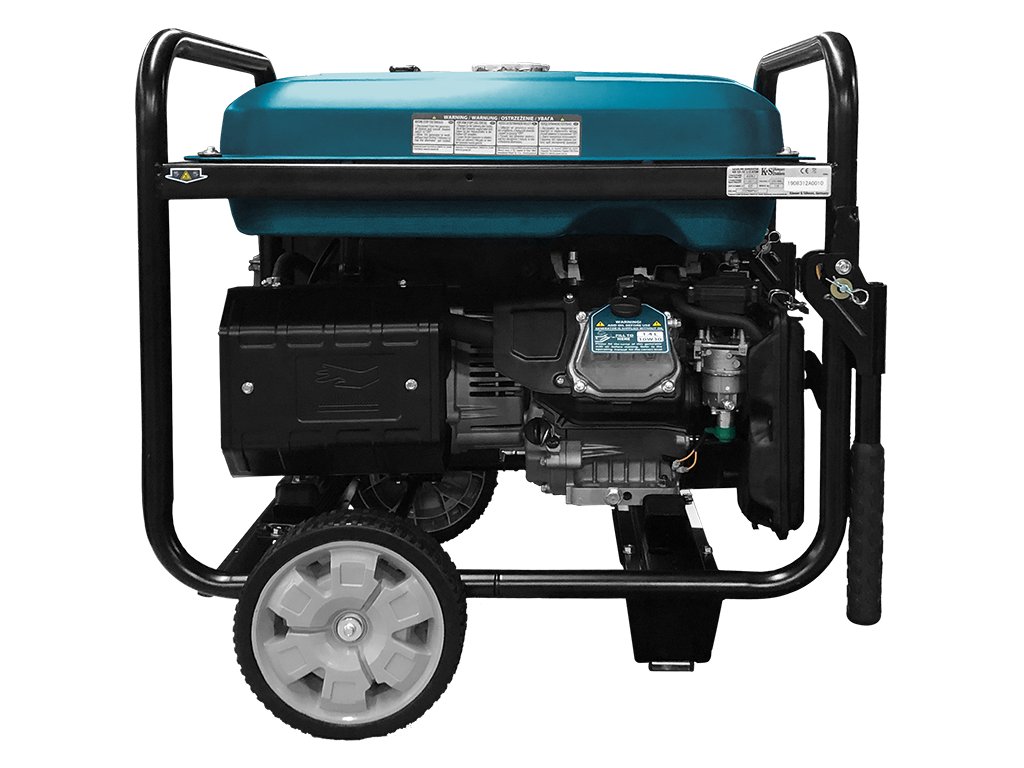

Könner & Söhnen Gasoline Generator KS 12-1E 1/3 ATSR
| Maximum power 230 V | 8.2 kW |
| Nominal power 230 V | 8.0 kW |
| Maximum power 400 V | 11.5 kVA |
| Nominal power 400 V | 11.25 kVA |
| Engine power | 18.5 hp |
| Engine start | Manual/Electric |
| Fuel | Gasoline |
| Model of engine | KS 650 |
| Sockets | 1×32A(400V) 1×32A(230V) 1×16A(230V) |
| Fuel tank volume | 55 l |
| crankcase volume | 1.4 l |
| Net weight | 131 kg |
| Voltage | 230V/400V |
| Frequency | 50 Hz |
Könner & Söhnen Gasoline Generator KS 12-1E 1/3 ATSR
The gasoline generator KS 12-1E 1/3 ATSR offers maximum power with one cylinder!
The generator is suitable for connecting an ATS unit and features a unique VTS phase switching system that allows the generator to be used in both single-phase mode (230 V) and three-phase mode (400 V) without loss of power. A user-friendly ergonomic control panel with a generator emergency stop button and a multifunctional LED display allows monitoring of generator operation: voltage, frequency, operating hours and oil level. This model is equipped with sockets for complete draw-off of the current generated by the generator. These sockets are equipped with fuses and fitted with suitable plugs. The large fuel tank with a volume of 55 l ensures long and continuous operation.
POWERFUL ENGINE
Powerful and robust single-cylinder air-cooled four-stroke engine (18.5 hp). Each engine meets European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution).
FLUENT AND CONVENIENT START SYSTEM
The simplified starting system allows the engine to start quickly without any significant effort. The more powerful models are additionally equipped with an electric and/or self-starting system for convenience.
VTS SYSTEM
The unique innovative VTS (Voltage Transfer Switch) phase switching system with equivalent performance for single-phase (230V) and three-phase (400V) loads. Each mode has its own circuit breaker.
ERGONOMIC CONTROL PANEL
The user-friendly ergonomic control panel allows easy control of the entire unit, requires no special skills and is equipped with sockets for the complete collection of the current generated by the generator. Each socket is equipped with a corresponding plug and Emergency stop button.
ATS CONNECTION - KS ATS 4/32-12
The generator is suitable for connection of an ATS system. The universal 8-pin connection socket does not limit the selection of the automatic transfer system (ATS).
STEEL TANK
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
Additional parameters
| Category: | Dle použití |
|---|---|
| Weight: | 145 kg |
| Hmotnost: | 121 - 180kg |
| Jmenovitý výkon: | 7,1 - 9 kW, 11,1 - 13 kW |
| ? Kapacita palivové nádrže: | 50,1 - 60 l |
| Maximální výkon: | 7,7 - 9,6 kW, 9,7 - 12,6 kW |
| Napětí: | 230/400 V |
| Startér: | Elektrický |
| Napětí, V: | 230/400 |
| Max. výkon/jmenovitý výkon 230 V: | 8.2/8.0 kW |
| Max. výkon/jmenovitý výkon 400 V: | 11.5/11.25 kVA |
| Frekvence: | 50 Hz |
| Proud, А (max): | 35/17 |
| Zásuvky: | 1×32A(400V)/1×32A(230V)/1×16A(230V) |
| Objem palivové nádrže, l: | 55 |
| LED displej: | napětí, frekvence, pracovní doba, alarm olej |
| Úroveň hluku Lpa (7m)/Lwa, dB: | 71/96 |
| Zásuvka 12V, А: | 12/8.3 |
| Model motoru: | KS 650 |
| Typ motoru: | benzínový, jednoválcový, čtyřtaktní, vzduchem chlazený |
| Výkon motoru, hp/kW: | 18.5/13.6 |
| Objem olejové jímky, l: | 1.4 |
| Objem válce motoru, cm3: | 625 |
| Regulátor výstupního výkonu: | Inteligentní stabilizační systém napětí AVR |
| Start motoru: | elektrický |
| Faktor síly, cos φ: | 1/0.8 |
| Čisté rozměry (D*Š*V), mm: | 790×705×680 |
| Hrubé rozměry (D*Š*V), mm: | 800×715×780 |
| Čistá hmotnost, kg: | 131 |
| Hrubá hmotnost, kg: | 145 |
| Akumulátor, Ah: | 21 |
| Ochranná třída: | IP23M |
Benzínové elektrocentrály s VTS systémem
Elektrický start
Ruční start
Spuštění benzínové elektrocentrály
