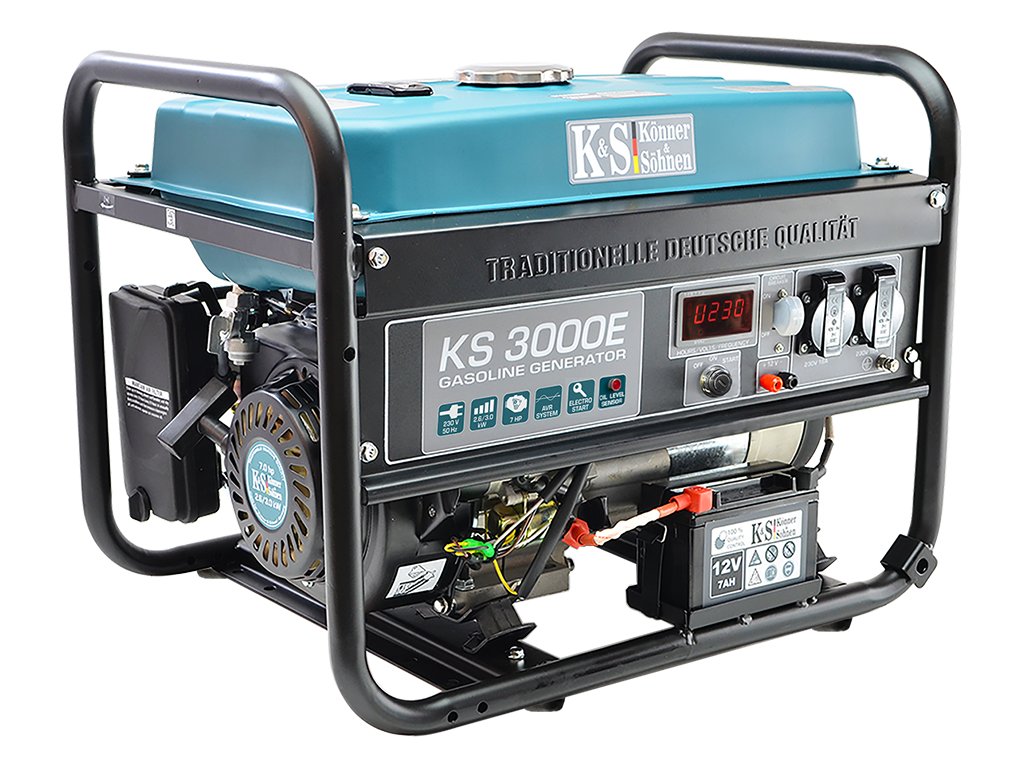

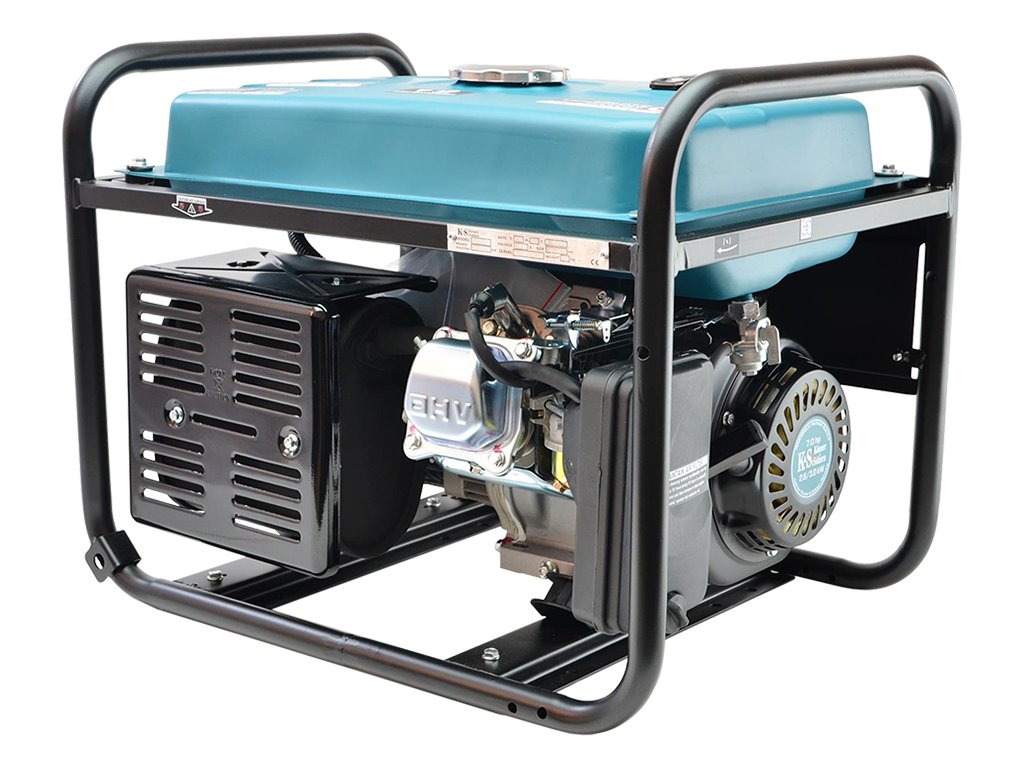

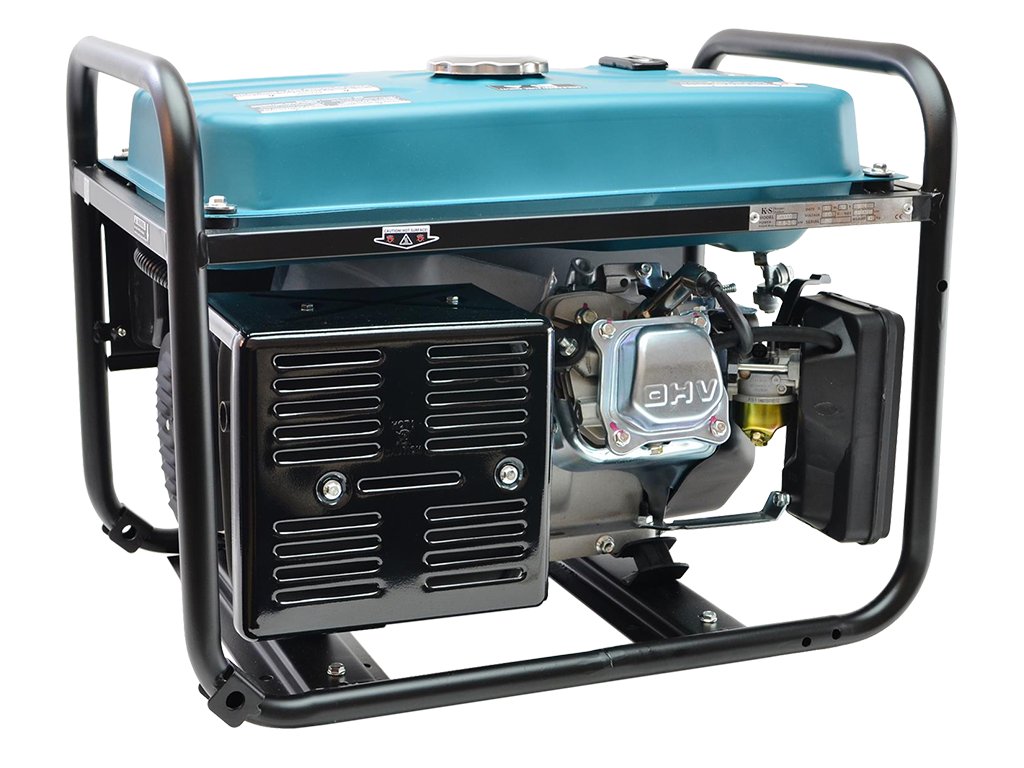

Könner & Söhnen Gasoline Generator KS 3000E
| Maximum power | 3.0 kW |
| Nominal power | 2.6 kW |
| Engine power | 7.0 hp |
| Engine start | Manual / Electric |
| Fuel | Gasoline |
| Model of engine | KS 210 |
| Sockets | 2x16A (230V) |
| Fuel tank volume | 15 l |
| Crankcase volume | 0.6 l |
| Running time at load 50% | 15 h |
| Net weight | 46.1 kg |
| Voltage | 230 V |
| Frequency | 50 Hz |
Könner & Söhnen Gasoline Generator KS 3000E
BRAND ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" trademark and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand motors are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.
INDIVIDUAL SERIAL NUMBERS ON THE ENGINES
Könner & Söhnen engines meet all global and European quality standards, including the latest EURO V emission standards. This is proven by European quality certificates. Each engine and each power unit has its own serial number, which enables us to control the quality of production and service.
ALTERNATOR WITH 100% COPPER WINDING
Könner & Söhnen power units are equipped with a top-of-the-range synchronous alternator with 100% copper winding. This is the only copper winding that can withstand maximum loads without damage to ensure long term reliable operation of the genset.
FLUENT AND CONVENIENT STARTING SYSTEM WITH ELECTRO START
The easy start system allows the engine to be started quickly and without much effort. This more powerful model is also equipped with an electric starting system.
STEEL TANK
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
IMPROVED VIBRATION DAMPING SYSTEM
All Könner & Söhnen power centre models are equipped with rubber feet to reduce vibration. Thanks to the rubber shock absorber, the working electrocentrifuge will not damage the floor covering, nor will the frame finish be scratched.
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 48 kg |
| Hmotnost: | 0 - 60kg |
| Jmenovitý výkon: | 0,7 - 3 kW |
| ? Kapacita palivové nádrže: | 10,1 - 20 l |
| Maximální výkon: | 1,7 - 4,6 kW |
| Napětí: | 230 V |
| Startér: | Ruční/elektrický |
| Napětí, V: | 230 |
| Max. výkon, kW: | 3.0 |
| Jmenovitý výkon, kW: | 2.6 |
| Frekvence, Hz: | 50 |
| Proud, A (max): | 13.04 |
| Zásuvky: | 12/8.3 |
| Objem palivové nádrže, l: | 15 |
| Průměrná pracovní doba (výkon 50%), h: | 15 |
| LED displej: | napětí, frekvence, pracovní doba |
| Úroveň hluku Lpa (7m)/Lwa, dB: | 68/93 |
| Zásuvka 12 V, А: | 12/8.3 |
| Model motoru: | KS 210 |
| Typ motoru: | benzínový, jednoválcový, čtyřtaktní, vzduchem chlazený |
| Výkon motoru, HP, kW: | 7.0/5.15 |
| Objem olejové jímky, l: | 0.6 |
| Objem válce motoru, cm3: | 208 |
| Regulátor výstupního výkonu: | AVR |
| Start motoru: | ruční/elektrický |
| Čisté rozměry (D*Š*V), mm: | 580x430x440 |
| Hrubé rozměry (D*Š*V), mm: | 610х455х485 |
| Čistá hmotnost, kg: | 46.1 |
| Hrubá hmotnost, kg: | 47.5 |
| Ochranná třída: | IP23M |
Elektrický start
Ruční start
Spuštění benzínové elektrocentrály
