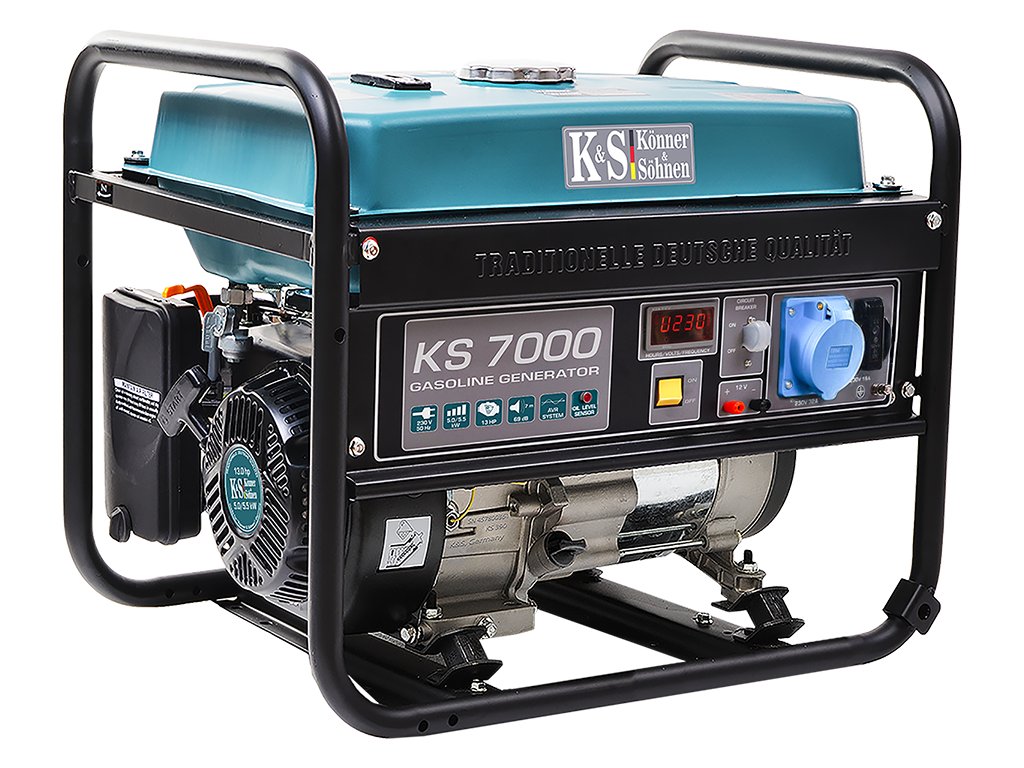

Könner & Söhnen Gasoline Generator KS 7000
| Maximum power | 5.5 kW |
| Nominal power | 5.0 kW |
| Engine power | 13 hp |
| Engine start | Manual |
| Fuel | Gasoline |
| Model of engine | KS 390 |
| Sockets | 1x16A (230V) 1x32A (230V) |
| Fuel tank volume | 25 l |
| Crankcase volume | 1.1 l |
| Running time at load 50% | 17 h |
| Net weight | 69.2 kg |
| Voltage | 230 V |
| Frequency | 50 Hz |
Könner & Söhnen Gasoline Generator KS 7000
BRAND ENGINES
The engines of the K&S series were developed especially for the "Könner & Söhnen" brand and have successfully passed several hours and multi-stage tests. The "Könner & Söhnen" brand engines are reliable, durable and cost-effective. The reliable "Könner & Söhnen" brand engine meets all European quality standards, including the latest EURO V exhaust emission standard.
INDIVIDUAL SERIAL NUMBERS ON THE ENGINES
Könner & Söhnen engines meet all global and European quality standards, including the latest EURO V emission standards. This is proven by European quality certificates. Each engine and each power unit has its own serial number, which enables us to control the quality of production and service.
FLUENT AND CONVENIENT START SYSTEM
The simplified starting system allows the engine to start quickly without any significant effort. The more powerful models are additionally equipped with an electric and/or self-starting system for convenience.
ALTERNATOR WITH 100% COPPER WINDING
The generators of the brand "Könner & Söhnen" are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure durable and reliable operation of the generator.
USER-FRIENDLY ERGONOMIC CONTROL PANEL
Thanks to the ergonomic alternator control panel, you can get the job done comfortably as all functions are conveniently arranged: modern LED display (hour meter, frequency, voltage), electric start (optional), overload protection switch, oil level sensor, sockets, earthing plug, terminals and more.
STEEL TANK
"Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which increases the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling.
IMPROVED VIBRATION DAMPING SYSTEM
All models of the "Könner & Söhnen" brand generators are equipped with a double anti-vibration system, which ensures quiet and durable generator operation. The engines are mounted on high quality rubber pads. The reinforced steel frame is fitted with rubber feet, which provide additional protection against vibration, sliding and corrosion.
Additional parameters
| Category: | Generators |
|---|---|
| Weight: | 72 kg |
| Hmotnost: | 61 - 120kg |
| Jmenovitý výkon: | 3,1 - 5 kW |
| ? Kapacita palivové nádrže: | 20,1 - 30 l |
| Maximální výkon: | 4,7 - 7,6 kW |
| Napětí: | 230 V |
| Startér: | Ruční |
| Napětí, V: | 230 |
| Max. výkon, kW: | 5.5 |
| Jmenovitý výkon, kW: | 5.0 |
| Frekvence, Hz: | 50 |
| Proud, A (max): | 23.91 |
| Zásuvky: | 1x16A/1x32A |
| Objem palivové nádrže, l: | 25 |
| Průměrná pracovní doba (výkon 50%), h: | 17 |
| LSD displej: | napětí, frekvence, pracovní doba |
| Úroveň hluku Lpa (7m)/Lwa, dB: | 70/95 |
| Výstupní výkon 12V, A: | 12/8.3 |
| Model motoru: | KS 390 |
| Typ motoru: | benzínový, jednoválcový, čtyřtaktní, vzduchem chlazený |
| Výkon motoru, hp/kW: | 13.0/9.56 |
| Objem olejové jímky, l: | 1.1 |
| Objem válce motoru, cm3: | 389 |
| Regulátor výstupního výkonu: | Inteligentní stabilizační systém napětí AVR |
| Start motoru: | ruční |
| Faktor síly, cosφ: | 1 |
| Čisté rozměry (D*Š*V), mm: | 680x545x550 |
| Hrubé rozměry (D*Š*V), mm: | 700x545x590 |
| Čistá hmotnost, kg: | 71.6 |
| Ochranná třída: | IP23M |
Ruční start
Spuštění benzínové elektrocentrály
